JK 1 Ton 14 Bolt 60 Tooth Tone Ring
SKU : BB1403
Regular price
$54.99
$43.99
Complete your build with
JK 1 Ton 14 Bolt 60 Tooth Tone Ring
- CNC machined steel components
- Engineered using 3D scan files
- Zinc Plated for corrosion resistance
- Improved sensor feedback
- Made in the USA

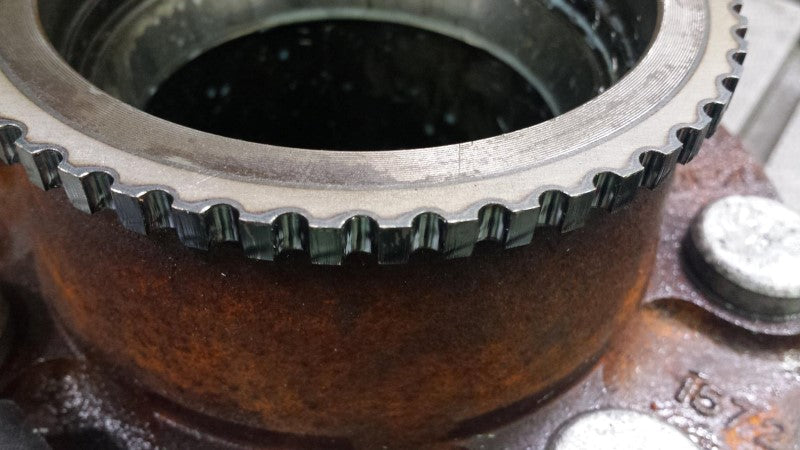

Artec Industries tone ring mounts are used with the factory ABS sensors to correct data and eliminate codes and limp mode issues. These mounts are used with the 2005+ Super Duty Dana 60 and this kit is designed to work with the matching Super Duty axle set. The tone ring is zinc plated for corrosion resistance and improved sensor feedback.
Calipers (Choose one of the items listed below)
-Raybestos RC4072 & RC4071
-Napa N4674 & N4673
-Napa N4597 & N4596
Wheel Studs
-Dorman P/N 610-333 – 16 of these are needed(10.9/333 14 x 1.5mm 90.5 mm long)
Rotors (Choose one of the items listed below with a Quantity of 2)
-Network P/N P56828
-Raybestos P/N 55055
-Bendix P/N PRT5260
-58828
14 Bolt Rear Axle with Factory Disc Brakes
BB1430: BB1411 ABS Sensor Mount and 52 Tooth tone rings
BB1431: BB1411 ABS Sensor Mount and 60 Tooth tone rings
-Individual parts that are in this kit and available separately:
BB1411: 14 bolt Sensor mounts
These mounts are used with JK Factory ABS Sensors. Select the Tooth count to match your front axle, Factory JK and aftermarket axles are typically 52 tooth and the 2005+ SuperDuty Dana 60 front utilizes a 60 Tooth tone ring.
If using a front axle without tone rings a second BB1411 can be used to add a second ABS Sensor to each wheel and then splice into the front sensor wiring.
